OPC Studio User's Guide and Reference
UAAnalogItemNode<TValue,TAttribute> Class
Members



OpcLabs.EasyOpcUA Assembly > OpcLabs.EasyOpc.UA.DataAccess Namespace : UAAnalogItemNode<TValue,TAttribute> Class
The type of the UABaseDataVariable<TValue,TAttribute>.Value of the node.
The type used to access the Value attribute.
This VariableType defines the general characteristics of an AnalogItem. All other AnalogItem Types derive from it. The AnalogItemType derives from the DataItemType.

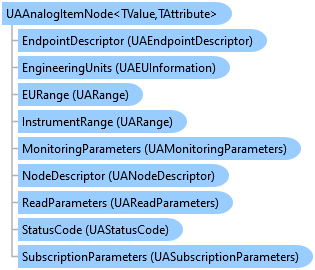

Object Model
UAAnalogItemNode<TValue,TAttribute> ClassUAEndpointDescriptor ClassUAEUInformation ClassUARange ClassUARange ClassUAMonitoringParameters ClassUANodeDescriptor ClassUAReadParameters ClassUAStatusCode ClassUASubscriptionParameters Class
Syntax
'Declaration

<ComVisibleAttribute(False)>
<UATypeDefinitionIdAttribute("nsu=http://opcfoundation.org/UA/;i=2368")>
<UANamespaceAttribute("http://opcfoundation.org/UA/")>
<UATypeAttribute()>
<CLSCompliantAttribute(True)>
<TypeConverterAttribute(System.ComponentModel.ExpandableObjectConverter)>
Public Class UAAnalogItemNode
    (Of TValue,TAttribute)
   Inherits UADataItemNode(Of TValue,TAttribute)
[ComVisible(false)]
[UATypeDefinitionId("nsu=http://opcfoundation.org/UA/;i=2368")]
[UANamespace("http://opcfoundation.org/UA/")]
[UAType()]
[CLSCompliant(true)]
[TypeConverter(System.ComponentModel.ExpandableObjectConverter)]
public class UAAnalogItemNode<TValue,TAttribute> : UADataItemNode<TValue,TAttribute>
[ComVisible(false)]
[UATypeDefinitionId("nsu=http://opcfoundation.org/UA/;i=2368")]
[UANamespace("http://opcfoundation.org/UA/")]
[UAType()]
[CLSCompliant(true)]
[TypeConverter(System.ComponentModel.ExpandableObjectConverter)]
generic<typename TValue>
generic<typename TAttribute>
public ref class UAAnalogItemNode : public UADataItemNode<TValue,TAttribute>
Type Parameters
TValue
The type of the UABaseDataVariable<TValue,TAttribute>.Value of the node.
TAttribute
The type used to access the Value attribute.
Inheritance Hierarchy

System.Object
   OpcLabs.BaseLib.LiveMapping.MappedObject
      OpcLabs.EasyOpc.UA.LiveMapping.UAMappedNode
         OpcLabs.EasyOpc.UA.InformationModel.UABaseVariable<TValue,TAttribute>
            OpcLabs.EasyOpc.UA.InformationModel.UABaseDataVariable<TValue,TAttribute>
               OpcLabs.EasyOpc.UA.DataAccess.UADataItemNode<TValue,TAttribute>
                  OpcLabs.EasyOpc.UA.DataAccess.UAAnalogItemNode<TValue,TAttribute>

Requirements

Target Platforms: .NET Framework: Windows 10 (selected versions), Windows 11 (selected versions), Windows Server 2016, Windows Server 2022; .NET: Linux, macOS, Microsoft Windows

See Also
